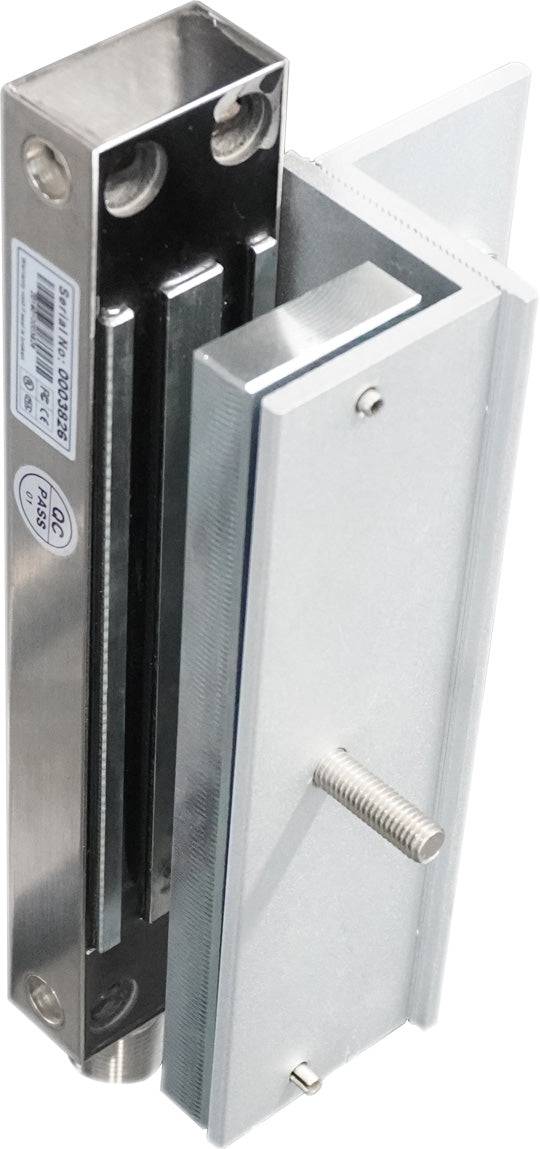

Magnetic lock 650kg - for swing gates - Electric lock with Z bracket

Magnetic locks are recommended for swing gates over 3m in width. They ensure gates are locked into each other or to a gate post. They are also useful in areas where wind may affect gates.

Electrically driven by the motors control panel, the magnet lock coil is energised to attract the supplied steel plate and hold the plate until power is disconnected by the control panel for the motor to move. A 12v power regulator or ac to dc converter may be required to power the lock from your control board lock output

Power 12/24V dc

Holding force 650KG

Weather rating IP44

Magnet Width 70mm

Plate Width 70mm
