BFT Gate Motor Kit for Swing Gate - Kustos Single A40

The BFT Kustos A40 linear drive single motor is a premium motor for swing gates which are mounted on posts.

The main advantage over competitors linear motors is the completely covered worm screw. This ensures maximum protection against external agents (water, dust, dirt, etc.) as well as a total protection for people, preventing any type of access to the moving parts.

Designed primarily for residential or light commercial use, this model is suitable for swing gate leaves up to 4.0 metres wide, weighing up to 500 kg each leaf. The motors feature adjustable position sensors which mean ground stops are not mandatory. A optional magnetic lock is recommended for gates greater than 3 meters in width.

Made In Italy - 2 Year Warranty - Installation available in Victoria at extra cost - contact us!

Kit includes:

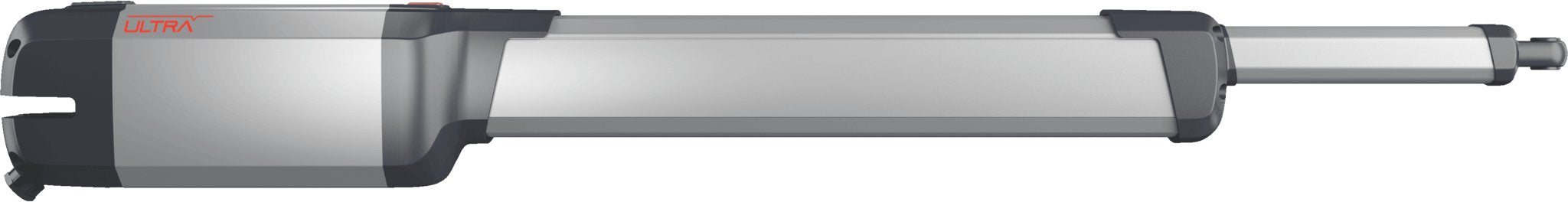

- 1 x BFT Kustos Linear Drive Motor - A40

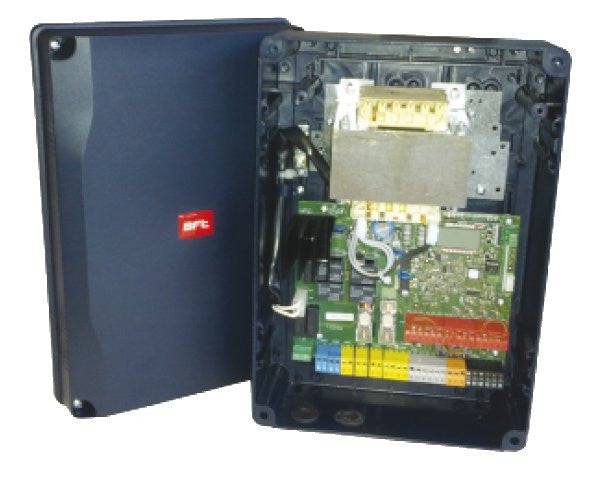

- 1 x Control Panel With 230v Power Lead

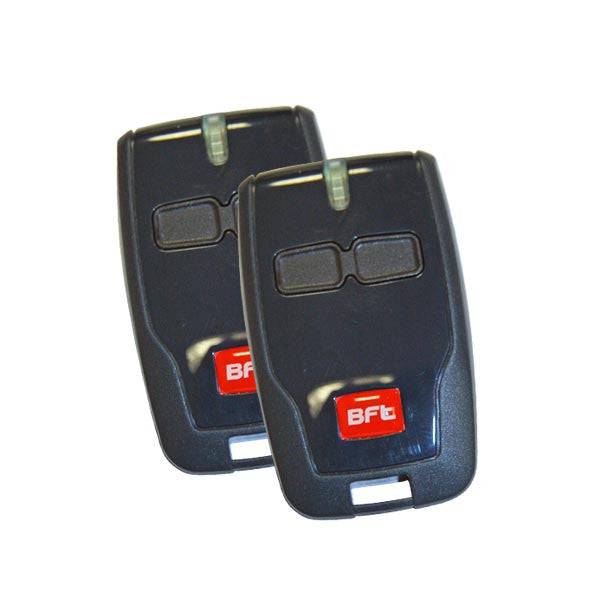

- 2 x BFT Mitto Remote Control Transmitters

- Brackets

Installation tips:

- A minimum space of 150mm is required between the hinge and any obstruction (wall/fence)

- Use 3 core flexible cable 1.5mm2 to wire the motors

-The motors are 24v, which means no electrician is required to run the cable across the driveway.
