Swing Gate Motor Kit - Heavy Duty

The BFT A40 Kustos heavy duty linear drive motor is a premium motor for swing gates which are mounted on posts.

The main advantage over competitors linear motors is the completely covered worm screw. This ensures maximum protection against external agents (water, dust, dirt, etc.) as well as a total protection for people, preventing any type of access to the moving parts.

Designed primarily for residential use and suitable for swing gate leaves up to 4 metres wide and weighing up to 500kg each leaf. The motors feature adjustable position sensors which mean ground stops are not mandatory.

Made In Italy - 2 Year Warranty - Installation available in Victoria at extra cost or Australia wide delivery - contact us!

The BFT Swing Motor Kit A40 Double kit - a powerful swing gate motor for AUstralian homes and light industrial applications

Kit includes:

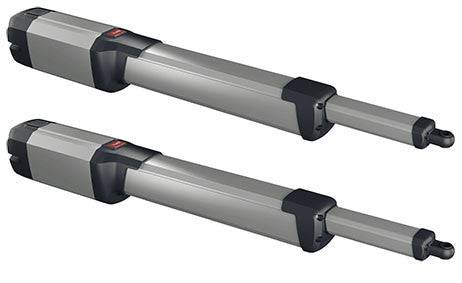

- 2 x BFT Kustos Linear Drive Motors A40 heavy duty swing gate motor

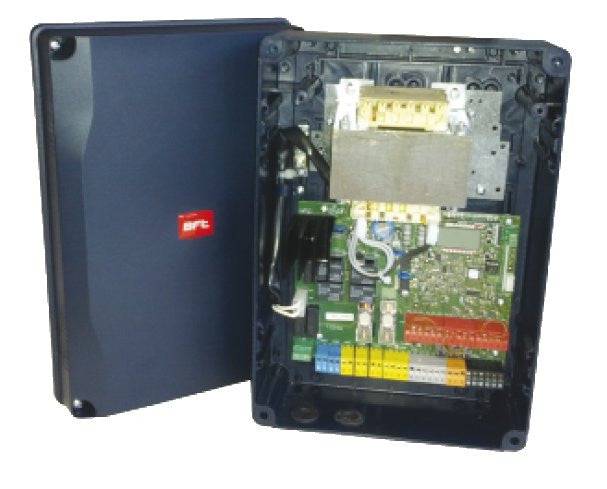

- 1 x Control Panel With 230v Power Lead

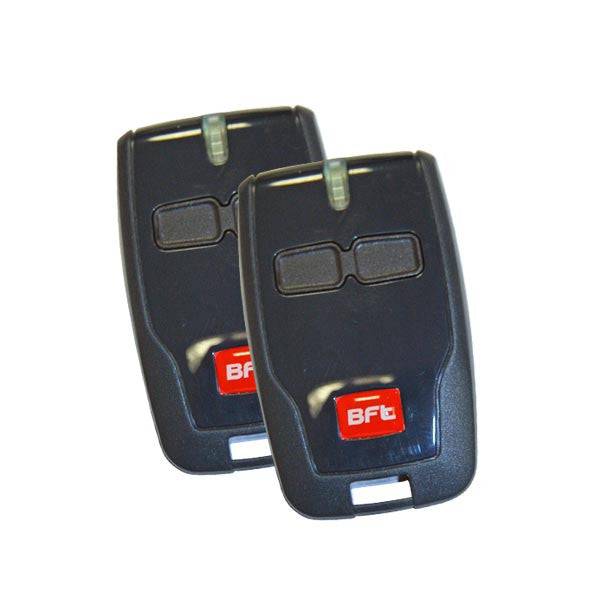

- 2 x BFT Mitto Remote Control Transmitters

- Brackets

Installation tips:

- A minimum space of 180mm is required between the centre of the hinge and any obstruction (wall/fence)

- Use 3 core flexible cable 1.5mm2 to wire the motors

-The motors are 24v, which means no electrician is required to run the cable across the driveway.

• Delivery time usually 2-3 days through Courier or Australia Post
• Need more information? Don't hesitate to call us on 1300 71 71 39 or email at: info@poweredgatesaustralia.com
