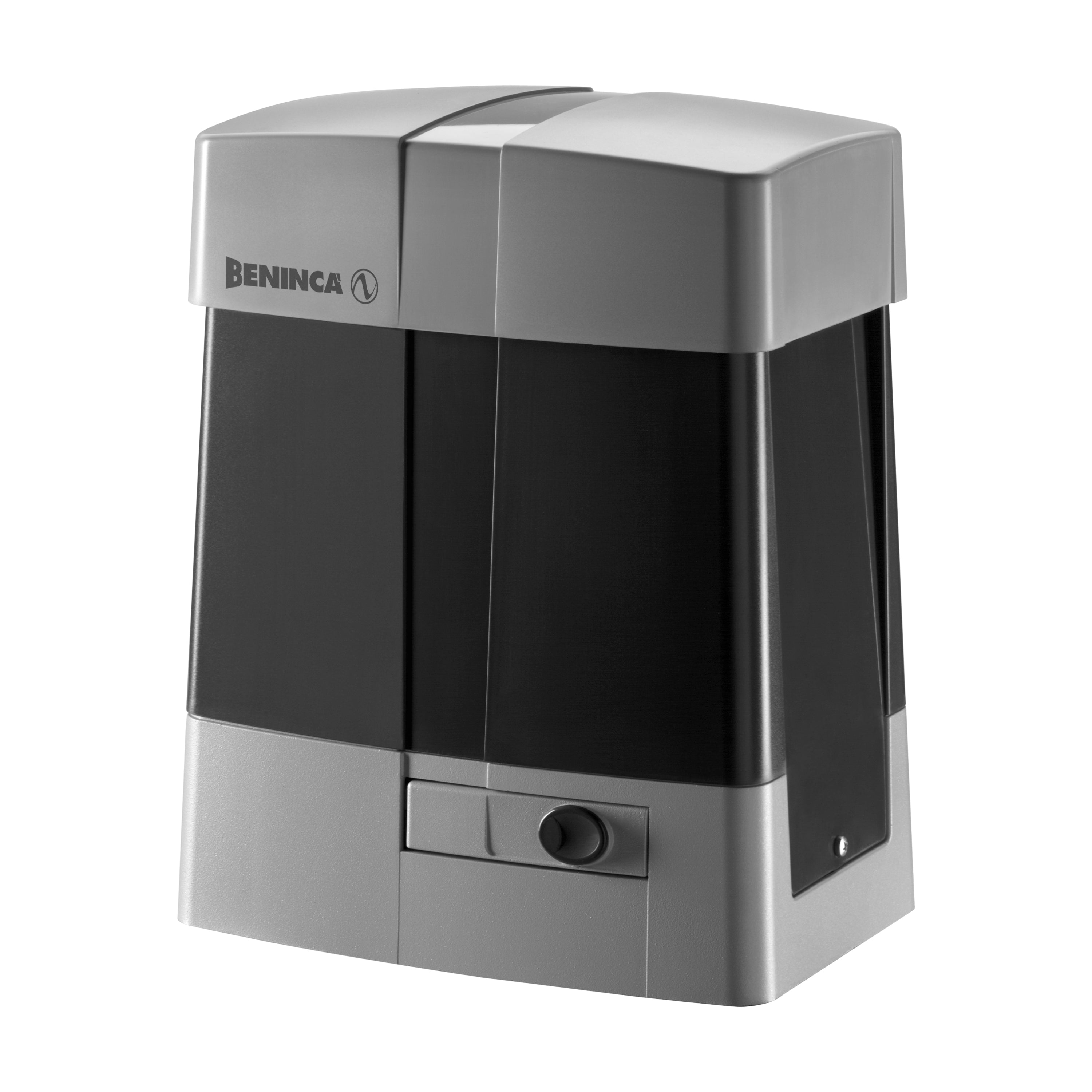

BENINCA Chain Drive Sliding Gate Motor 1700kg

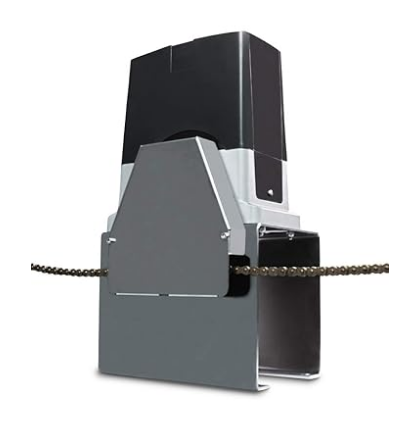

Chain Drive Operator for gates with track issues

Commercial Grade Sliding Gate motor

Italian made quality - FREE SHIPPING

When dealing with sliding gates on uneven ground, slopes, or hills, one must choose a motor carefully to avoid complications. The BENINCA Chain Drive Sliding Gate Motor 1700kg is the perfect solution for controlling and stopping gates on a downhill run. With its powerful 240 volt motor, durable Beninca gearbox, and electronic braking control board, this operator is ideal for large gates and sloping sites. The external finish exhibits BENINCA's signature quality, featuring a cast alloy chassis, steel base plate and overall high standard construction.

TECH SPECS:-

• Single phase 240 Vac geared motor for intensive use with oil lubricated reductions

• The main control unit, located in the top part of the motor and with integrated inverter, makes it possible to calculate the position of the motor starting from the measurement of current intensity on the electric motor via virtual encoder

• Oil lubrication gearbox guarantees maximum duration of the reducer. The type of oil is very effective and guarantees excellent performance even at low temperatures

• Reduced mechanical wear of components

• Adjustable speed from 10 to 24 m/min according to gate weight

• On board radio receiver and control board with various safety & access control inputs

CHAIN DRIVE SPECS - DOWNLOAD:
